Scheduling a Conversion Job

Note: If you find this built in scheduler is not flexible enough please use the Windows Task Scheduler.

A short video has been prepared covering this topic. However the documentation below is much more comprehensive.

'Convert XLS' has a built-in timer, providing the flexibility to execute a saved Conversion Job at regular intervals ranging from a few seconds to several months. You're given the option to either run the job at a designated time, day, and date (Calendar-Based scheduling), or at consistent, recurring intervals (Time-Based scheduling).

This feature can be effectively used in together with other program options, allowing you to skip, move, or delete an input file after processing. This helps in preventing the repeated processing of the same files.

Before activating the scheduler in 'Convert XLS', it's essential to have a Conversion Job (*.SII) already saved as a file. For guidance on how to create a Conversion Job file, refer to the Saving and Restoring a Conversion Job section in the manual.

IMPORTANT: Remember to REWIND the job to the start before saving. This ensures that each time you load or schedule the job, it starts from the first task.

Step by Step: How To Schedule a Job

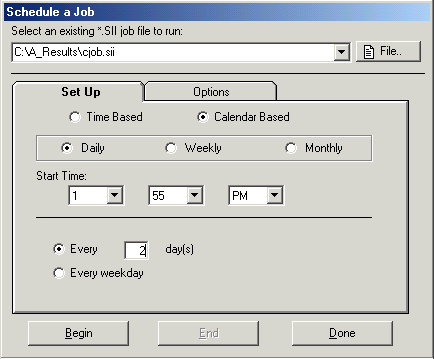

1. Go to 'Conversion' in the menu and choose 'Schedule A Conversion Job' or simply press F8. This will open the job scheduling form.

2. Choose an already created *.SII conversion job file.

3. Decide on your scheduling method:

• Time Based: Ideal for jobs that need to run repeatedly after a set time, like every 35 minutes.
• Calendar Based: Perfect for scheduling a job at a specific time and day, such as the 3rd day of each month at 10:30 PM.

4. Click Begin to start the scheduler.

Note: The title bar of the application will show a countdown, letting you know how long until the next job starts.

Time Based

With time based scheduling you specify the time you want to elapse between runs of the conversion job. This can be expressed as a combination of hours, minutes and/or seconds or may be one of the time elements only. For example, 1 hour and 30 minutes may also be expressed as 90 minutes.

If you specify a conversion job to run every hour, each subsequent job will begin running exactly one hour after the start time of the previous job. For example, say you've set the timer to run every hour and it will begin the first run at 12:15 PM. Even if the job takes 15 minutes to run, the next running time will still be at 1:15 PM, then 2:15 PM etc. Please see the Table 1 below.

 Table 1. Time table for a job that is 15 minutes in length and is scheduled to run every hour.

If the job takes more than an hour to run while only given one hour to complete, the next job can optionally run immediately after the last one finishes, or at the next scheduled time (see the scheduler options section for additional info).

Calendar Based

You have several options for the Calendar Based scheduler but in all cases you will need to enter a time of day to run the job (Start Time).

Daily

If you select Daily you may run the job once every day, once per day on weekdays (Monday through Friday), or once daily a specific number of days apart. For example, specifying a run "Every 3 Days" will run once daily every third day. Selecting this option allows you to run jobs from 1 to a maximum of 99 days apart.

Weekly

If you select Weekly you may run the job from once per week up to once every 99 weeks. You can specify from one to all seven days of the week on which to run the job. When scheduling keep in mind that Sunday at midnight is the end of a week with Monday beginning the next week. This is important if, for example, you're scheduling a job to run Tuesdays and Fridays every 2nd week. If the day you're starting the scheduler is Wednesday then the job will run on Friday (week 1), skip week 2 as expected, then run both Tuesday and Friday in week 3 and so on. This is illustrated in the table below:

   Table 2. Scheduling a job on Wednesday that will run Tuesdays and Fridays every second week.

Monthly

Select Monthly to run the job once per month on a specified day. You may indicate a maximum of 12 months apart for each run of the job. This feature allows you to schedule quarterly, biannual or annual runs, for example. If the last day of the month is the desired run date, enter 31 for the run date. The scheduler allows for months of varying length and selects the last day of each particular month be it 28, 29, 30 or 31.

Running the Scheduler

To begin or end the scheduler for visible (F8)

Click the Begin or End button to start or stop the timer respectively.

Once you've started the timer, you'll note that the tool bar buttons within the application are no longer available except for the Pause button. So long as the timer is running, you should not attempt to use this instance of 'Convert XLS' for any tasks other than the scheduled task. If you need to use 'Convert XLS' for other non-scheduled tasks, simply open another instance of the application by running it a second time. As long as the timer is running, your computer must remain on and 'Convert XLS' must remain running. For convenience you may choose to minimize the running instance of 'Convert XLS' to a button on your task bar.

Scheduler Options

Select the tab labeled Options to see the following two settings:

Automatically restart the timer on program load

This allows the 'Convert XLS' timer to be started automatically the next time you run 'Convert XLS'. In other words, if you run a scheduled job and then end that job and close 'Convert XLS', the next time you open 'Convert XLS', that job will be reopened and set to run automatically as though you had clicked the Begin button. This means that if you've scheduled a job that runs every second week, for example, when the timer automatically restarts the 'Convert XLS' scheduler will recalculate the next run based on today's date regardless of the length of time that might have been remaining before the next run when you last closed 'Convert XLS'.

HINT: You can have 'Convert XLS' launched by your operating system when starts (on Windows 7 it is know as the Startup folder). That combined with this program option will allow you to easily automate conversion jobs with no effort.

Time Overrun Handling

In the event that a Time Based job runs longer than the time period specified, 'Convert XLS' gives you two options for handling the circumstance.

If you select Immediately after the current job finishes, the next job will begin running immediately upon completion of the preceding run. This means that the jobs will be running continuously, back-to-back regardless of the time interval entered. Selecting Skip this run and set the timer for the next one causes one run of the conversion job to be skipped but runs at the next scheduled time. Please see Table 3 for an example of this where the interval is set for every 15 minutes, but the running time of the job is 20 minutes. Effectively what happens in this case is the job will run every other time.

Table 3. Based on a 15 minute interval, a Next Target Time is calculated. In this example the job takes 20 minutes to run, so the Next Target Time has been missed. With the 'Skip' option selected, CPTI will realize the next target time has past and will recalculate a new target time based on the interval specified by the user. The job will run at 1:00, 1:30, 2:00 etc., running half as often as expected.

Additional Notes about the Scheduler

The scheduler operates according to your local computer's clock. Therefore, if your computer's time is changed after you've started the scheduler, it's crucial to check that the scheduler is still functioning correctly. In some cases, you might need to restart the scheduler to align it with the computer's updated date and time.
